Non Flame Retardant Heat Shrink Polyolefin Tubing
Category:Cold Shrink Tube
VSL-HSPE03
APPLICATION
VSL-HSPE03 is made from good quality high polymer. Economical and halogen free which makes it ideal product when flame retardant properties are not needed.
Flexible
Shiny surface (black), Crystal (clear)
Halogen free alternative to PVC
RoHS compliant, REACH
Operatingtemperature Minimum shrinktemperature Minimum full recoverytemperature -55°C to +105°C 70°C 105 °C Standard Color: Black, Clear.
Property Test Method Typical Data Physical Tensile Strength ASTM D 2671 ≥10.4Mpa Elongation ASTM D 2671 ≥200% Longitudinal Shrinkage UL 224 ≤5% Tensile Strength after Heat Aging UL 224 168hrs at 158°C ≥7.3Mpa Elongation after Heat Aging UL 224 168hrs at 158°C ≥100% Heat Shock UL 224 4hrs at 250°C No Dripping, No Cracking Specific Gravity ASTM D 792 1.2 g/cm3 Low Temperature Flexibility UL 224 1hrs at -30°C No cracking Flammability VW-1 Pass Electrical Dielectric Strength IEC 243 ≥15 kV/mm Volume Resistivity IEC 93 ≥1014ΩNaN Chemical Corrosion Resistance UL 224 168hrs at 158°C Pass Copper Stability UL 224 168hrs at 158°C Pass Water Absorption ASTM D 570 ≤0.15%

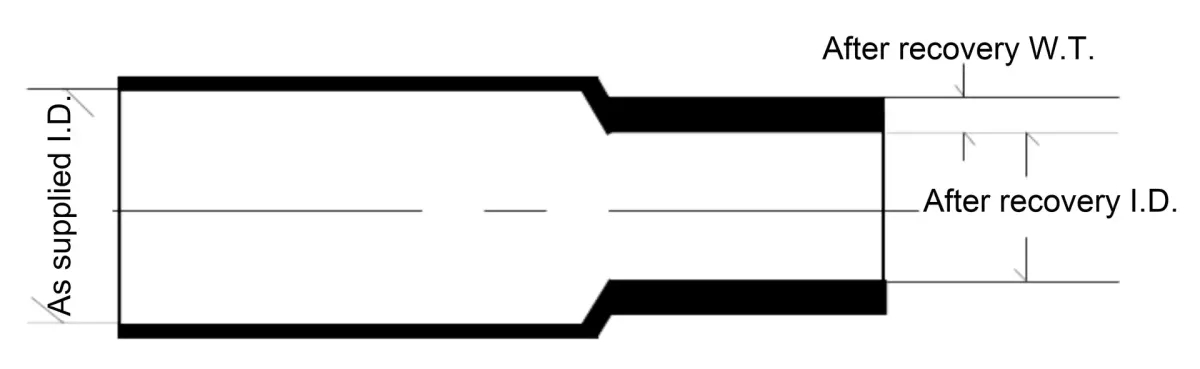

Size As Supplied (mm) After Recovery(mm) Shape Packing Options INCH MM I.D.(Min) I.D.(Max) W.T.(Min) M/Reel M/PC 1/16 1.0 1.3 0.65 0.18 Round 200 1.22 — 1.5 1.8 0.85 0.22 Round 200 1.22 3/32 2.0 2.3 1.00 0.25 Round 200 1.22 — 2.5 2.8 1.30 0.28 Round 200 1.22 1/8 3.0 3.3 1.50 0.30 Round 200 1.22 — 3.5 3.8 1.80 0.32 Round 200 1.22 — 4.0 4.3 2.00 0.35 Round 200 1.22 3/16 4.5 4.8 2.30 0.40 Round 100 1.22 — 5.0 5.3 2.5 0.45 Round 100 1.22 — 5.5 5.8 2.75 0.45 Round 100 1.22 1/4 6.0 6.3 3.0 0.45 Round 100 1.22 — 7.0 7.2 3.5 0.45 Flat 100 1.22 — 8.0 8.2 4.0 0.50 Flat 100 1.22 3/8 9.0 9.2 4.5 0.50 Flat 100 1.22 — 10.0 10.2 5.0 0.50 Flat 100 1.22 — 11 11.2 5.5 0.50 Flat 100 1.22 1/2 12 12.2 6.0 0.50 Flat 100 1.22 — 13 13.2 6.5 0.55 Flat 100 1.22 — 14 14.2 7.0 0.55 Flat 100 1.22 — 15 15.1 7.5 0.60 Flat 100 1.22 — 16 16.1 8.0 0.60 Flat 100 1.22 — 17 17.1 8.5 0.60 Flat 100 1.22 3/4 18 18.5 9.0 0.60 Flat 100 1.22 — 20 20.5 10.0 0.65 Flat 100 1.22 — 22 22.5 11.0 0.65 Flat 100 1.22 1 25 25.5 12.5 0.75 Flat 50 1.22 1-1/4 28 28.5 14.0 0.75 Flat 50 1.22 — 30 30.5 15.0 0.80 Flat 50 1.22 — 35 35.5 17.5 0.85 Flat 50 1.22 1-1/2 40 40.5 20.0 0.85 Flat 50 1.22 — 45 45.5 22.5 0.85 Flat 25 1.22 2 50 50 25.0 0.85 Flat 25 1.22 Note: Special sizes available on request.
