Yellow & Green Heat Shrink Polyolefin Tubing
Category:Cold Shrink Tube
VSL-HSPE02
APPLICATION
VSL-HSPE02 is made from excellent yellow, green polyethylene material by special technique. Used to identify electrical grounding as well as protecting and insulating wires harnesses of light cabling and easy to mark for additional identification. So the heat shrink is applied to wire or cable middle earth wire marks, special wire cable or conduit marks etc.
Dual colors
Meets UL 224
RoHS compliant, REACH
Operatingtemperature Minimum shrinktemperature Minimum full recoverytemperature -55°C to +125°C 70°C 120 °C Standard Color: Yellow & Green Striped.
Property Test Method Typical Data Physical Tensile Strength ASTM D 2671 ≥14Mpa Elongation ASTM D 2671 ≥500% Longitudinal Shrinkage UL 224 ≤5% Tensile Strength after Heat Aging UL 224 168hrs at 158°C ≥12Mpa Elongation after Heat Aging UL 224 168hrs at 158°C ≥300% Heat Shock UL 224 4hrs at 250°C No Dripping, No Cracking Specific Gravity ASTM D 792 1.3 g/cm3 Low Temperature Flexibility UL 224 1hrs at -30°C No cracking Flammability VW-1 Pass Electrical Dielectric Strength IEC 243 ≥20 kV/mm Volume Resistivity IEC 93 ≥1014ΩNaN Chemical Corrosion Resistance UL 224 168hrs at 158°C Pass Copper Stability UL 224 168hrs at 158°C Pass Water Absorption ASTM D 570 ≤0.15%

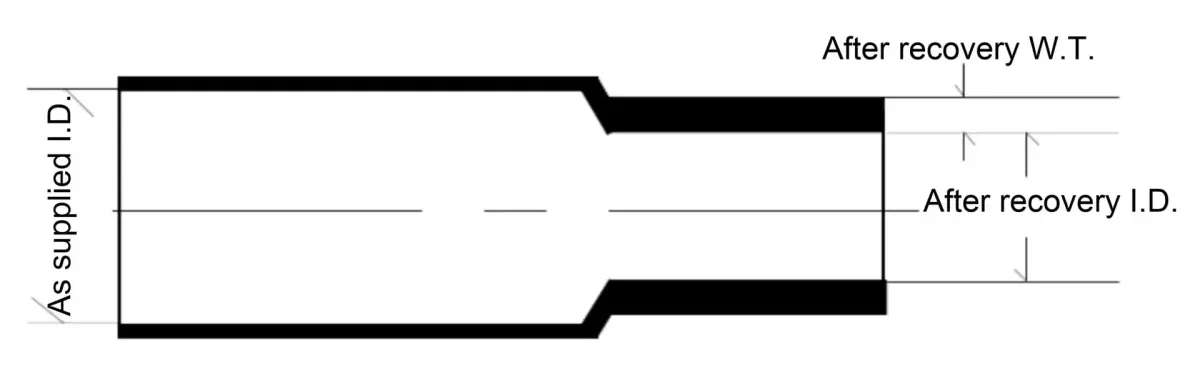

Size As Supplied(mm) After Recovery(mm) Shape Packing Options INCH MM I.D.(Min) I.D.(Max) W.T.(Min) M/Reel M/PC Ratio: 2:1 1/16 1.0 1.2 0.65 0.18 Round 200 1.22 — 1.5 1.7 0.85 0.22 Round 200 1.22 3/32 2.0 2.2 1.00 0.30 Round 200 1.22 — 2.5 2.7 1.30 0.30 Round 200 1.22 1/8 3.0 3.1 1.50 0.30 Round 200 1.22 — 3.5 3.6 1.80 0.32 Round 200 1.22 — 4.0 4.1 2.00 0.35 Round 200 1.22 3/16 4.5 4.6 2.30 0.40 Round 100 1.22 — 5.0 5.1 2.5 0.45 Round 100 1.22 1/4 6.0 6.1 3.0 0.45 Round 100 1.22 — 7.0 7.1 3.5 0.45 Flat 100 1.22 — 8.0 8.0 4.0 0.50 Flat 100 1.22 3/8 9.0 9.0 4.5 0.50 Flat 100 1.22 — 10.0 10.0 5.0 0.50 Flat 100 1.22 1/2 12 12.0 6.0 0.55 Flat 100 1.22 — 13 13.0 6.5 0.55 Flat 100 1.22 — 14 14.0 7.0 0.60 Flat 100 1.22 — 15 14.9 7.5 0.65 Flat 100 1.22 — 16 15.9 8.0 0.65 Flat 100 1.22 3/4 18 18.3 9.0 0.65 Flat 100 1.22 4/5 20 20.3 10.0 0.67 Flat 100 1.22 — 22 22.3 11.0 0.67 Flat 100 1.22 1 25 25.3 12.5 0.85 Flat 50 1.22 — 28 28.3 14.0 0.85 Flat 50 1.22 1-1/4 30 30.8 15.0 0.90 Flat 50 1.22 — 35 35.8 17.5 1.00 Flat 50 1.22 1-1/2 40 40.8 20.0 1.05 Flat 50 1.22 2 50 50.3 25.0 1.05 Flat 25 1.22 Ratio: 3:1 1/8 3.2 3.2 1.0 0.45 Round 200 1.22 3/16 4.8 4.8 1.5 0.50 Round 100 1.22 1/4 6.4 6.4 2.0 0.55 Round 100 1.22 3/8 9.5 9.5 3.0 0.65 Flat 50 1.22 1/2 12.7 12.7 4.0 0.75 Flat 50 1.22 3/4 19.1 19.1 6.0 0.90 Flat 50 1.22 1 25.4 25.4 8.0 1.05 Flat 50 1.22 1-1/2 39 39.0 13 1.20 Flat 50 1.22 Note: Special sizes available on request.
