VSL-HSPE01
APPLICATION
VSL-HSPE01 is a halogen free heat shrinkable tube and widely used in electrical insulation, protection of components, strain relief, cable bundling, identification and so on. It is designed formulation of high polymers, through cross-link by electronic accelerator and continuous expansion.
Halogen free (black only), Flexible, Flame retardant
Meets UL 224, CSA, RoHS , REACH
Operatingtemperature | Minimum shrinktemperature | Minimum full recoverytemperature |
-55°C to +125°C | 70°C | 120 °C |
Standard Color: Black, White, Red, Yellow, Blue, Green, Clear (non-flame retardant)
Property | Test Method | Typical Data | |
Physical | Tensile Strength | ASTM D 2671 | ≥10.4Mpa |
Elongation | ASTM D 2671 | ≥200% | |
Longitudinal Shrinkage | UL 224 | ≤5% | |
Tensile Strength after Heat Aging | UL 224 168hrs at 158°C | ≥7.3Mpa | |
Elongation after Heat Aging | UL 224 168hrs at 158°C | ≥100% | |
Heat Shock | UL 224 4hrs at 250°C | No Dripping, No Cracking | |
Specific Gravity | ASTM D 792 | 1.2 g/cm3 | |
Low Temperature Flexibility | UL 224 1hrs at -30°C | No cracking | |
Flammability | VW-1 | Pass | |
Electrical | Dielectric Strength | IEC 243 | ≥15 kV/mm |
Volume Resistivity | IEC 93 | ≥1014ΩNaN | |
Chemical | Corrosion Resistance | UL 224 168hrs at 158°C | Pass |
Copper Stability | UL 224 168hrs at 158°C | Pass | |
Water Absorption | ASTM D 570 | ≤0.15% |

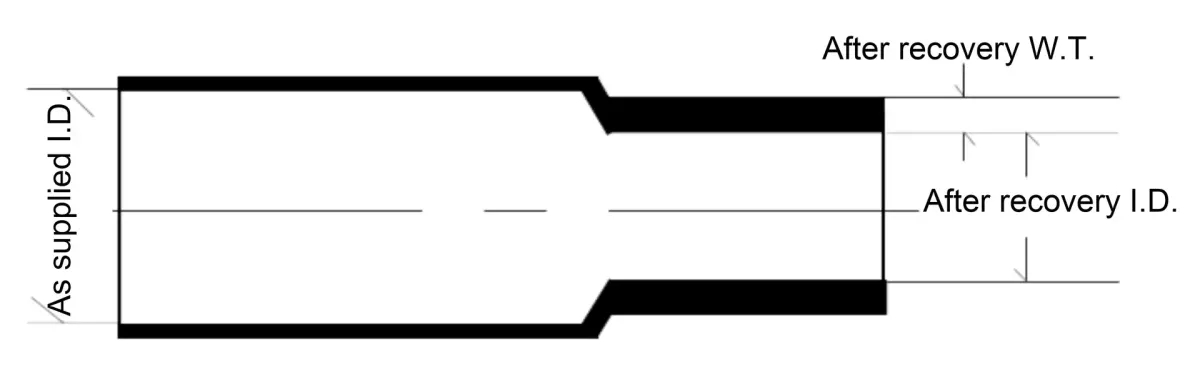

Size | As Supplied (mm) | After Recovery(mm) | Shape | Packing Options | |||
INCH | MM | I.D.(Min) | I.D.(Max) | W.T.(Min) | M/Reel | M/PC | |
1/16 | 1.0 | 1.3 | 0.65 | 0.18 | Round | 200 | 1.22 |
— | 1.5 | 1.8 | 0.85 | 0.22 | Round | 200 | 1.22 |
3/32 | 2.0 | 2.3 | 1.00 | 0.25 | Round | 200 | 1.22 |
— | 2.5 | 2.8 | 1.30 | 0.28 | Round | 200 | 1.22 |
1/8 | 3.0 | 3.3 | 1.50 | 0.30 | Round | 200 | 1.22 |
— | 3.5 | 3.8 | 1.80 | 0.32 | Round | 200 | 1.22 |
— | 4.0 | 4.3 | 2.00 | 0.35 | Round | 200 | 1.22 |
3/16 | 4.5 | 4.8 | 2.30 | 0.40 | Round | 100 | 1.22 |
— | 5.0 | 5.3 | 2.5 | 0.45 | Round | 100 | 1.22 |
1/4 | 6.0 | 6.3 | 3.0 | 0.45 | Round | 100 | 1.22 |
— | 7.0 | 7.2 | 3.5 | 0.45 | Flat | 100 | 1.22 |
— | 8.0 | 8.2 | 4.0 | 0.50 | Flat | 100 | 1.22 |
3/8 | 9.0 | 9.2 | 4.5 | 0.50 | Flat | 100 | 1.22 |
— | 10.0 | 10.2 | 5.0 | 0.50 | Flat | 100 | 1.22 |
— | 11 | 11.2 | 5.5 | 0.50 | Flat | 100 | 1.22 |
1/2 | 12 | 12.2 | 6.0 | 0.50 | Flat | 100 | 1.22 |
— | 13 | 13.2 | 6.5 | 0.55 | Flat | 100 | 1.22 |
— | 14 | 14.2 | 7.0 | 0.55 | Flat | 100 | 1.22 |
— | 15 | 15.1 | 7.5 | 0.60 | Flat | 100 | 1.22 |
— | 16 | 16.1 | 8.0 | 0.60 | Flat | 100 | 1.22 |
— | 17 | 17.1 | 8.5 | 0.60 | Flat | 100 | 1.22 |
3/4 | 18 | 18.5 | 9.0 | 0.65 | Flat | 100 | 1.22 |
4/5 | 20 | 20.5 | 10.0 | 0.65 | Flat | 100 | 1.22 |
— | 22 | 22.5 | 11.0 | 0.65 | Flat | 100 | 1.22 |
1 | 25 | 25.5 | 12.5 | 0.75 | Flat | 50 | 1.22 |
— | 28 | 28.5 | 14.0 | 0.75 | Flat | 50 | 1.22 |
1-1/4 | 30 | 30.5 | 15.0 | 0.80 | Flat | 50 | 1.22 |
— | 35 | 35.5 | 17.5 | 0.85 | Flat | 50 | 1.22 |
1-1/2 | 40 | 40.5 | 20.0 | 0.85 | Flat | 50 | 1.22 |
— | 45 | 45.5 | 22.5 | 0.85 | Flat | 25 | 1.22 |
2 | 50 | 50 | 25.0 | 0.85 | Flat | 25 | 1.22 |
— | 60 | 60 | 31.0 | 1.10 | Flat | 25 | 1.22 |
— | 70 | 70 | 36.0 | 1.10 | Flat | 25 | 1.22 |
3 | 80 | 80 | 41.0 | 1.26 | Flat | 25 | 1.22 |
— | 90 | 90 | 46.0 | 1.26 | Flat | 25 | 1.22 |
4 | 100 | 100 | 51.0 | 1.26 | Flat | 25 | 1.22 |
Ratio:3:1 | |||||||
1/16 | 1.5/0.5 | 1.5 | 0.5 | 0.35 | Round | 200 | 1.22 |
1/8 | 3.0/1.0 | 3.0 | 1.0 | 0.45 | Round | 200 | 1.22 |
3/16 | 4.5/1.5 | 4.5 | 1.0 | 0.50 | Round | 100 | 1.22 |
1/4 | 6.0/2.0 | 6.0 | 2.0 | 0.55 | Round | 100 | 1.22 |
3/8 | 9.0/3.0 | 9.0 | 3.0 | 0.60 | Flat | 50 | 1.22 |
1/2 | 12.0/4.0 | 12.0 | 4.0 | 0.60 | Flat | 50 | 1.22 |
5/8 | 15.0/5.0 | 15.0 | 5.0 | 0.65 | Flat | 50 | 1.22 |
3/4 | 18.0/6.0 | 18.0 | 6.0 | 0.70 | Flat | 50 | 1.22 |
1 | 24.0/8.0 | 24.0 | 8.0 | 0.80 | Flat | 25 | 1.22 |
1-1/4 | 30.0/10.0 | 30.0 | 10.0 | 0.95 | Flat | — | 1.22 |
1-1/2 | 39.0/13.0 | 39.0 | 13.0 | 1.30 | Flat | — | 1.22 |
2 | 50/16 | 50 | 16 | 2.30 | Flat | — | 1.00 |
— | 60/20 | 60 | 20 | 2.40 | Flat | — | 1.00 |
— | 70/23 | 70 | 23 | 2.40 | Flat | — | 1.00 |
3 | 80/26 | 80 | 26 | 2.40 | Flat | — | 1.00 |
— | 90/30 | 90 | 30 | 2.40 | Flat | — | 1.00 |
4 | 100/33 | 100 | 33 | 2.40 | Flat | — | 1.00 |
Notes: Other size is available upon special inquiry.
