Dual Wall Heat Shrink Polyolefin Tubing
Category:Shrink Products

PRODUCTS

Dual Wall Heat Shrink Polyolefin Tubing

  • VSL-HSPE05 is made from co-extrusion of polyolefin and hot-melt adhesive. With the excellence of soft, airproof, fireproof and so on, it could provide both insulation and sealing for protected articles.

  • Flame retardant, Waterproof

    Meets UL224

    RoHS compliant, REACH

    Operatingtemperature Minimum shrinktemperature Minimum full recoverytemperature
    -55°C to +125°C 70°C 120 °C

     Standard Color:Black.

  • Property Test Method Typical Data
     Physical Tensile Strength ASTM D 2671 ≥12Mpa
    Elongation ASTM D 2671 ≥300%
    Longitudinal Shrinkage UL 224 ≤10%
    Tensile Strength after Heat Aging UL 224 168hrs at 158°C ≥10Mpa
    Elongation after Heat Aging UL 224 168hrs at 158°C ≥200%
    Heat Shock UL 224 4hrs at 250°C No Dripping, No Cracking
    Specific Gravity ASTM D 792 1.2 g/cm3
    Low Temperature Flexibility UL 224 1hrs at -30°C No cracking
    Flammability VW-1 Pass
    Electrical Dielectric Strength IEC 243 ≥15 kV/mm
    Volume Resistivity IEC 93 ≥1014ΩNaN
     Chemical Corrosion Resistance UL 224 168hrs at 158°C Pass
    Copper Stability UL 224 168hrs at 158°C Pass
    Water Absorption ASTM D 570 ≤0.15%
    Hot Melting Softening point ASTM E8 95°C
    Peel strength(PE) ASTM D1000 120N/25mm
    Peel strength(AL) ASTM D1000 80N/25mm

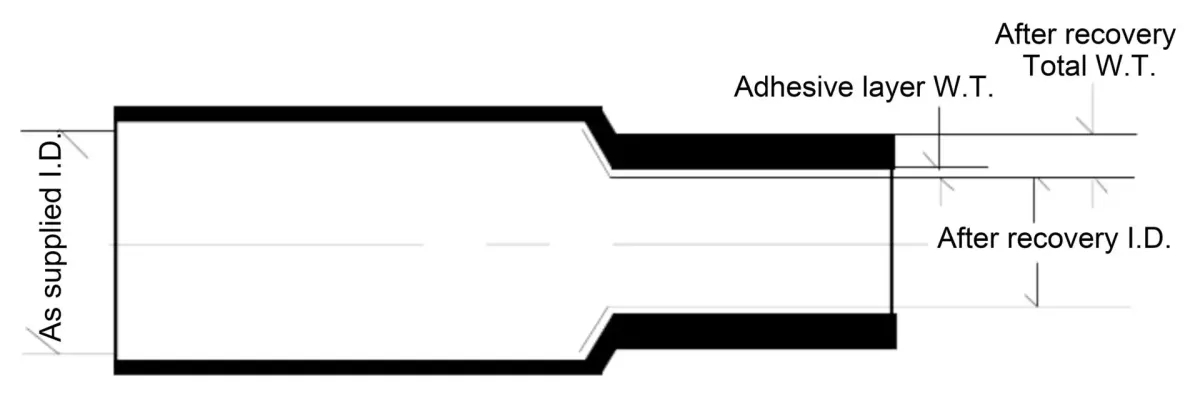

  • Size As supplied (mm)supplied(mm) After Recovery(mm) Shape Packing Options
    INCH MM I.D I.D. Total W.T. Adhesive layer W.T.   M/Reel M/PC
    Ratio: 2:1
    1/16 1.6 1.6 0.8 0.75 0.40 Round 200 1.22
    3/32 2.4 2.4 1.2 0.85 0.45 Round 200 1.22
    1/8 3.2 3.2 1.6 0.85 0.45 Round 200 1.22
    3/16 4.8 4.8 2.4 0.95 0.50 Round 100 1.22
    1/4 6.4 6.4 3.2 0.95 0.50 Round 100 1.22
    5/16 7.9 7.9 3.9 1.05 0.55 Flat 100 1.22
    3/8 9.5 9.5 4.8 1.05 0.55 Flat — 1.22
    1/2 12.7 12.7 6.4 1.15 0.55 Flat — 1.22
    5/8 15.9 15.9 7.9 1.15 0.55 Flat — 1.22
    3/4 19.1 19.1 9.5 1.20 0.60 Flat — 1.22
    1 25.4 25.4 12.7 1.30 0.60 Flat — 1.22
    1-1/4 31.8 31.8 15 1.35 0.60 Flat — 1.22
    1-1/2 38.1 38.1 19 1.45 0.60 Flat — 1.22
    1-3/4 44.5 44.5 22 1.55 0.65 Flat — 1.22
    2 50.8 50.8 25.4 1.75 0.65 Flat — 1.22
    Ratio: 3:1
    1/8 3.2 3.2 1.0 1.04 0.43 Round 200 1.22
    3/16 4.8 4.8 1.6 1.18 0.48 Round 100 1.22
    1/4 6.4 6.4 2.2 1.28 0.53 Round 100 1.22
    5/16 7.9 7.9 2.7 1.43 0.58 Flat 100 1.22
    3/8 9.5 9.5 3.2 1.53 0.58 Flat — 1.22
    1/2 12.7 12.7 4.2 1.78 0.58 Flat — 1.22
    5/8 15.0 15.0 5.2 1.90 0.65 Flat — 1.22
    3/4 19.1 19.1 6.3 2.10 0.65 Flat — 1.22
    1 25.4 25.4 8.5 2.20 0.65 Flat — 1.22
    1-1/4 30.0 30.0 10.20 2.30 0.70 Flat — 1.22
    1-1/2 39.0 39.0 13.50 2.50 0.70 Flat — 1.22
    2 50.0 50.0 17.00 2.80 0.80 Flat — 1.22
    5/2 64 64 21.00 3.15 0.80 Flat — 1.22
    3 75 75 25.00 3.35 1.15 Flat — 1.22
    7/2 90 90 30.00 3.45 1.15 Flat — 1.22
    4 100 100 34.00 3.65 1.35 Flat — 1.22
    5 125 125 42.00 3.65 1.35 Flat — 1.22
    Ratio: 4:1
    — 4.0 4.0 1.0 1.0±0.15 0.40±0.15 Round 200 1.22
    — 6.0 6.0 1.5 1.1±0.15 0.40±0.15 Round 100 1.22
    — 8.0 8.0 2.0 1.5±0.15 0.50±0.15 Flat 50 1.22
    — 12.0 12.0 3.0 1.7±0.15 0.50±0.15 Flat — 1.22
    — 16.0 16.0 4.0 2.0±0.15 0.60±0.15 Flat — 1.22
    — 20.0 20.0 5.0 2.3±0.25 0.60±0.15 Flat — 1.22
    — 24.0 24.0 6.0 2.5±0.25 0.60±0.15 Flat — 1.22
    — 32.0 32.0 8.0 2.8±0.30 0.70±0.15 Flat — 1.22
    — 52.0 52.0 13 3.0±0.30 0.70±0.15 Flat — 1.22

    Note:Printing, special sizes or colors available on request.
