Zipper Fold Wrapped Corrugated Tubing
  • VSL-BW11 is corrugated tubing made of PP or PA6.  It is specially designed to add a zipper part to the opening cut. It is widely used for wire harness protection.



  • Make wire harness not easy to be exposed

    Strength wire harness protection

    Extend wire harness life

    Super flexible

  • Material PP/PA6
    Working Temperature VSL-BW11-PP105 -40~105℃
    VSL-BW11-PP125 -40~125℃
    VSL-BW11-PA125 -40~125℃
    VSL-BW11-PA150 -40~150℃
    Flammability  UL94-V0
    Certificate RoHS
    Color Black
    TVOC Available(If the material is PP)

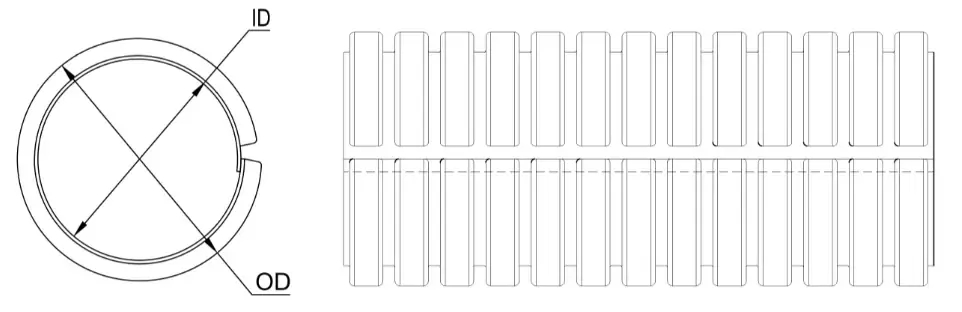

  • Size I.D.(mm) O.D.(mm)
    φ9 9.0 13.5
    φ11 11.0 16.55
    φ13 13.0 18.55
    φ16 16.0 21.50
    φ19 19.0 24.15
    φ23 23.0 28.75

    Notes: Special size or color is available if you request.
