Solder Splice Heat Shrink Sleeve
  • VSL-HSPE07 is specially designed for wire connection in different kinds of temperature applications, where extreme resistance to fuels, water and cleaning solvents is required.

  • Extreme fluid resistance and rub resistance

    High transparency provides assemblage convenience

    One-time realize welding, heat shrinkable protection, sealing.

    Shrink ratio 2:1

    Operatingtemperature Minimum shrinktemperature Minimum full recoverytemperature
    -55°C to +125°C 85°C 125 °C

     Standard Color:Red, Blue, Yellow, Grey

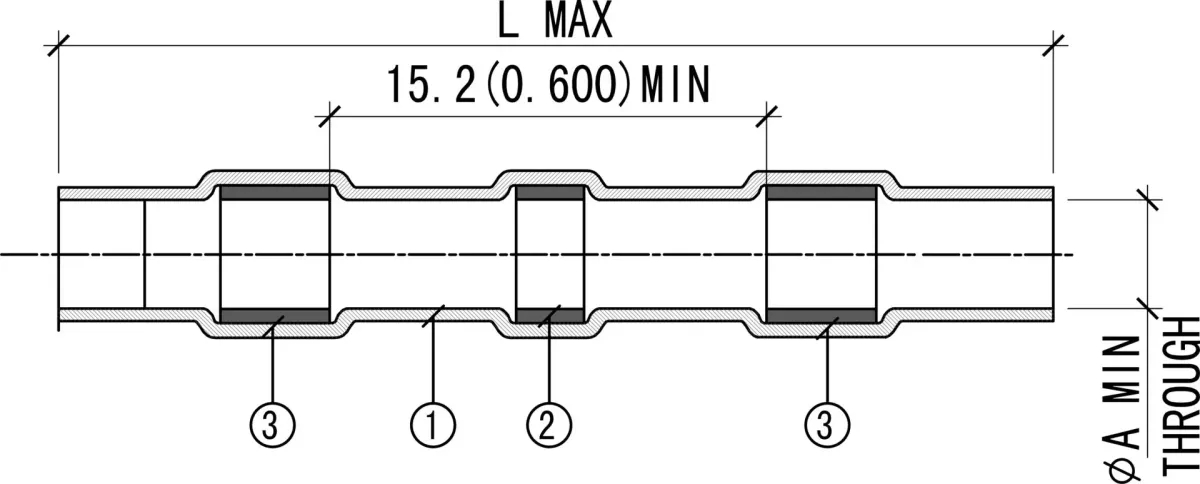

  • Product Name Sleeve Dimension Solder Ring Dimension Color
    I.D. (A) Min. (mm) Length (L) Nom. (mm) Width Nom.(mm)
    HSPE07-1 2.6 42.0 3.5 Red
    HSPE07-2 4.5 42.0 4.0 Blue
    HSPE07-3 6.0 42.0 4.5 Yellow
    HSPE07-4 7.0 42.0 5.0 Grey
