Thread Shape Cold Shrink Tube
Category:Cold Shrink Tube
Thread Shape Cold Shrink Tube

VSL-CS06

Thread Shape Cold Shrink Tube

APPLICATION

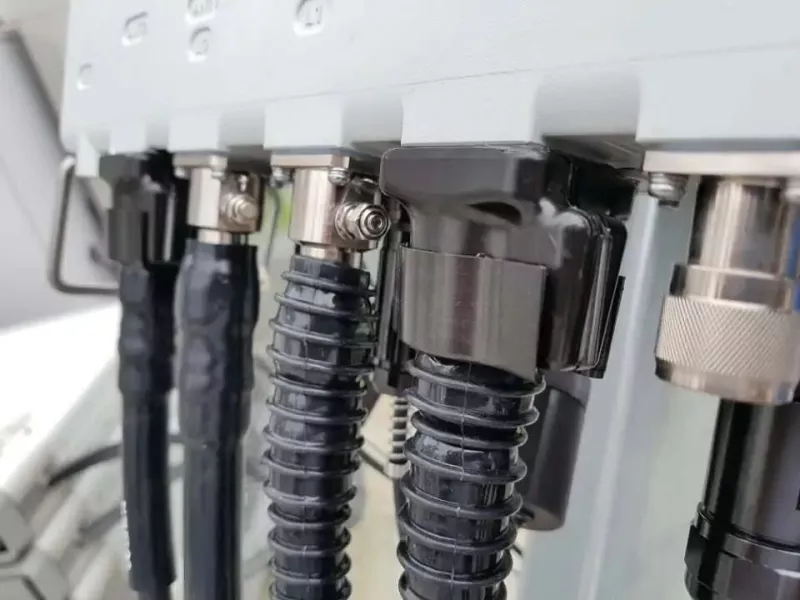

  • VSL-CS06 is made of silicone rubber , which is extruded to thread shape first and then expanded on the white plastic core. When using, Pull the white plastic strip towards the arrow direction and the thread shape silicone rubber will shrink on the protected body. It is specially designed to use for sealing telecom cable joint and make it waterproof.

  • High wear resistance

    High tearing resistance

    Excellent waterproof sealing

    Performance

    RoHS compliance

  • Test Item Test Method Unit Test standard Typical value
    Appearance     No cracks, No dust and dirt inside and outside Pass
    Color     Black or Grey Pass
    Hardness ISO76191:2010 Shore A 40±5 40
    Tensile strength GB/T 528-2009 MPa ≥7 9.8
    Elongation GB/T 528-2009 % ≥800 880
    Tear Strength GB/T 529-2008 KN/mm ≥35 39
    Breakdown Strength GB/T 1695-2005 kV/mm ≥20 23
    Volume resistivity GB/T 1410-2006 1015Ωcm ≥0.6 1.2
    High temperature waterproof After 90℃×16h   IP68 Pass
    Low temperature waterproof After -40℃×96h   IP 68 Pass
  • Size(mm) I.D. before Shrink(Min.) Length before shrink(Min.) I.D. after shrink(Max.) Length after shrink(Min.) W.T. after shrink(Min.)
    45/13 45mm 80mm 13mm 110mm 3.0mm

    Notes: Other size is available upon special inquiry.
