Step Shape Cold Shrink Tube
Category:Cold Shrink Tube
Step Shape Cold Shrink Tube

VSL-CS05

Step Shape Cold Shrink Tube

APPLICATION

  • VSL-CS05 is a special design cold shrink silicone rubber tube with one step shape. It will provide double protection for cable joint area after removing the white plastic tube.

  • Better tightness

    Double physical protection and moisture sealing in the connection of antenna-jumper cable

  • Property Test Method Typical value
    Physical Tensile Strength ASTM D412-75 9.0MPa
    Elongation ASTM D412-75 750%
    Tear Strength ASTM D624C-73 30KN/mm
    Stand Color   Black
    Working Temperature   -55°C ～ 200°C
    Electrical Dielectric strength ASTM D149-75 21KV/mm
    Dielectric strength After 7 days 90℃ H2O 20.5kv/mm
    Volume Resistivity ASTM D257 3.4*1013ΩNaN
    Chemical Fungus Resistance ASTM G21 No Growth

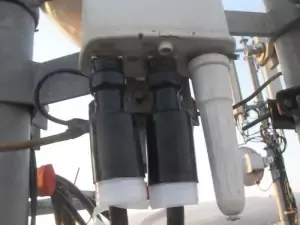

  • For Telecom Coaxial Cable Joint Application

    Size Removable Core- I.D.(mm)- As supplied tube length(mm)-Min Relaxed tube length (mm) Range of Sealing Part Min- Max (mm)
    40/10 40 120 140 11.9-34
