PA11/PA12 Corrugated Tubing
PA11/PA12 Corrugated Tubing

VSL-BW07

PA11/PA12 Corrugated Tubing

APPLICATION

  • VSL-BW07 is corrugated tubing made of PA11/PA12. It is Widely used in battery, chemical cable ,transmission space equipment ,water meter and other commercial equipment.

  • Low temperature resistance

    Strong impact toughness

    Low water absorption, low density

    Good long-term thermal stability

  • Material PA11/PA12
    Working Temperature -50~125℃(150℃ 240h,125℃ 3000h)
    Flammability  UL94-V0
    Certificate RoHS,Halogen-free
    Color Black
    Tubing cut to open Available

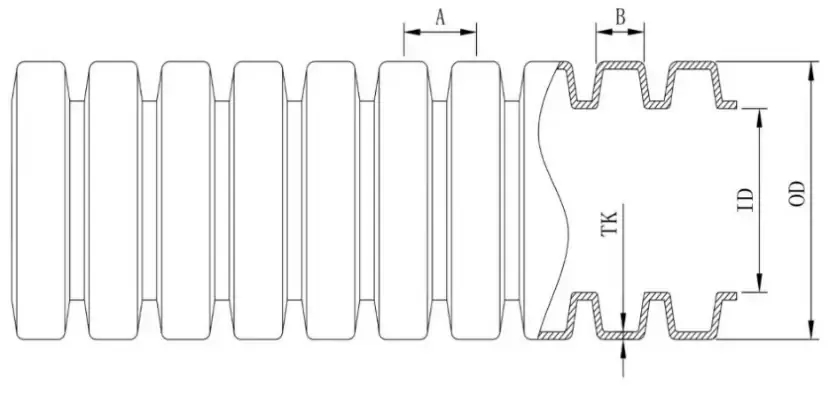

  • Size I.D.(mm) O.D.(mm) T.K.(mm) A(mm) B(mm) Packaging(m/reel)
    φ4.5*7 4.7±0.3 7.0±0.3 0.27±0.05 2.1 1.4 400
    φ5.2*7.2 5.2±0.3 7.4±0.3 0.27±0.05 2.1 1.4 400
    φ5.5*8 5.5±0.3 8.0±0.3 0.27±0.05 2.1 1.4 400
    φ6*9 6.0±0.3 9.0±0.3 0.27±0.05 2.5 1.7 200
    φ7*10 7.0±0.3 10.0±0.3 0.27±0.05 2.7 1.9 200
    φ7.5*10.5 7.7±0.3 10.7±0.3 0.27±0.05 2.7 1.8 200
    φ8.5*11.5 8.5±0.3 11.7±0.3 0.30±0.06 2.7 1.9 200
    φ9*12 9.2±0.3 12.0±0.3 0.30±0.06 2.7 1.9 200
    φ10*13 10.2±0.3 13.0±0.3 0.30±0.06 2.7 1.9 200
    φ11*14 11.2±0.3 14.0±0.3 0.30±0.06 2.7 1.9 200
    φ12.15.8 12.0±0.3 15.8±0.3 0.30±0.06 3.2 2.2 200
    φ12.9*16 12.9±0.3 16.0±0.3 0.30±0.06 3.2 2.1 200
    φ13*17 13.2±0.3 17.0±0.3 0.35±0.08 3.2 2.3 200
    φ14.3*18.5 14.5±0.4 18.5±0.4 0.35±0.08 3.2 2.3 200
    φ15.1*19.7 15.1±0.4 19.7±0.4 0.35±0.08 3.2 2.2 200
    φ15.2*18.7 15.3±0.4 18.8±0.4 0.35±0.08 3.2 2.3 200
    φ16*20 16.0±0.4 20.0±0.4 0.35±0.08 3.2 2.3 200
    φ17*21.2 17.0±0.5 21.2±0.5 0.35±0.08 3.6 2.4 200
    φ18*22 18.1±0.5 21.8±0.5 0.40±0.08 3.2 2.1 200
    φ19*23.5 19.0±0.5 23.5±0.5 0.40±0.08 3.2 2.3 200
    φ19.5*24.3 19.5±0.5 24.3±0.5 0.40±0.08 3.2 2.3 100
    φ20*25 20.5±0.5 25.0±0.5 0.40±0.08 3.1 2.3 100
    φ21*25.5 21.5±0.5 25.5±0.5 0.40±0.08 3.3 2.3 100
    φ22*26.8 22.0±0.5 26.8±0.5 0.40±0.08 3.1 2.3 100
    φ23*28.5 23.2±0.5 28.5±0.5 0.40±0.08 3.2 2.3 100
    φ25*32 25.5±0.5 32.0±0.5 0.40±0.08 4.5 2.7 100
    φ26*31 26.0±0.5 31.0±0.5 0.45±0.10 3.1 2.3 50
    φ29*34.5 29.0±0.6 34.5±0.6 0.45±0.10 3.5 2.3 50
    φ32*37 32.0±0.6 37.0±0.6 0.45±0.10 3.3 2.3 50
    φ36*42.5 36.0±0.6 42.5±0.6 0.50±0.10 4.2 3.0 50
    φ40*45 39.8±0.6 44.5±0.6 0.50±0.10 4.2 2.8 50
    φ48*54.5 48.0±0.6 54.5±0.6 0.50±0.10 4.3 3.0 25
    φ56*67.2 56.0±0.8 67.2±0.8 0.60±0.12 6.7 4.0 20
    φ66*80 66.5±0.8 80.0±0.8 0.60±0.12 8.5 5.0 10
    φ91*106 91.0±1.0 106.0±1.0 0.70±0.15 8.5 5.2 10

    Notes: Special size or color is available if you request.
