New Energy Auto Corrugated Tubing

  • VSL-BW06 is corrugated tubing made of PP or PA6. It is specially designed orange color for new energy auto wire harness to be warning HV cable.

  • Highly Anti-bending

    Good Mechanical strength

    Flame retardant

    Anti-abrasion

    Resistant to Oil,acid,alkali, UV

  • Material PP/PA6
    Flammability  UL94-V0
    Working Temperature VSL-BW06-PP125 -40~125℃(150℃ 240h,125℃ 3000h )
    VSL-BW06-PA125 -40~125℃(150℃ 240h,135℃ 3000h)
    VSL-BW06-PA150 -40~150℃(175℃ 240h,150℃ 3000h)
    Certificate RoHS,REACH,DIN5510
    Color Orange
    Tubing cut to open Available
    TVOC Available(If the material is PP)

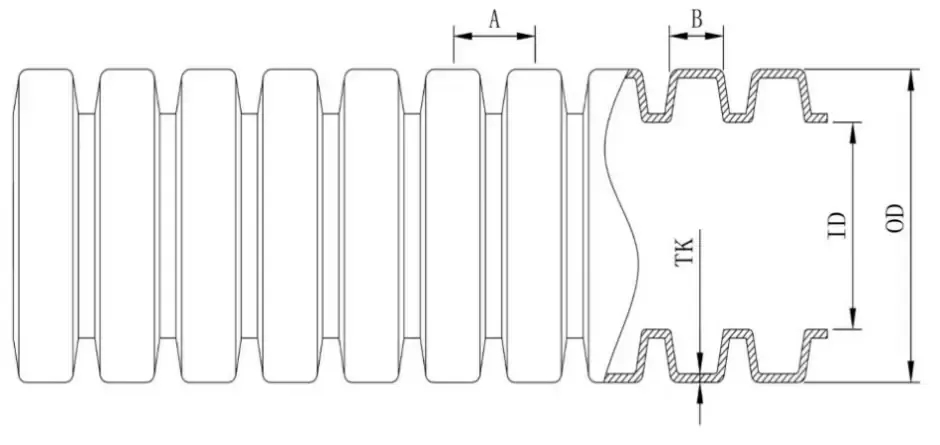

  • Size I.D.(mm) O.D.(mm) T.K.(mm) A(mm) B(mm) Packaging(m/reel)
    φ4.5*7 4.6±0.3 7.0±0.3 0.27±0.05 2.1 1.45 400
    φ5.2*7.2 5.2±0.3 7.4±0.3 0.27±0.05 2.1 1.45 400
    φ5.5*8 5.5±0.3 8.0±0.3 0.27±0.05 2.1 1.45 400
    φ6*9 6.0±0.3 9.0±0.3 0.27±0.05 2.5 1.75 200
    φ7*10 7.0±0.3 10.0±0.3 0.27±0.05 2.7 1.95 200
    φ7.5*10.5 7.7±0.3 10.7±0.3 0.27±0.05 2.7 1.80 200
    φ8.5*11.5 8.5±0.3 11.7±0.3 0.30±0.05 2.7 1.95 200
    φ9*12 9.2±0.3 12.0±0.3 0.30±0.05 2.7 1.95 200
    φ10*13 10.2±0.3 13.0±0.3 0.30±0.05 2.7 1.95 200
    φ11*14 11.2±0.3 14.0±0.3 0.30±0.05 2.7 1.95 200
    φ12*15.8 12.0±0.3 15.8±0.3 0.30±0.05 3.2 2.30 200
    φ12.9*16 12.9±0.3 16.0±0.3 0.30±0.05 3.2 2.15 200
    φ13*17 13.2±0.3 17.0±0.3 0.35±0.05 3.2 2.30 200
    φ14.3*18.5 14.5±0.4 18.5±0.4 0.35±0.05 3.2 2.30 200
    φ15.1*19.7 15.1±0.4 19.7±0.4 0.35±0.05 3.2 2.30 200
    φ15.2*18.7 15.2±0.4 18.7±0.4 0.35±0.05 3.2 2.25 200
    φ16*20 16.0±0.4 20.0±0.4 0.35±0.05 3.2 2.30 200
    φ17*21.2 17.0±0.5 21.2±0.5 0.35±0.05 3.6 2.45 200
    φ18*22 18.1±0.5 21.8±0.5 0.40±0.05 3.2 2.15 200
    φ19*23.5 19.0±0.5 23.5±0.5 0.40±0.05 3.2 2.30 200
    φ19.5*24.3 19.5±0.5 24.3±0.5 0.40±0.05 3.2 2.30 100
    φ20*25 20.5±0.5 25.0±0.5 0.40±0.05 3.1 2.35 100
    φ21*25.5 21.5±0.5 25.5±0.5 0.40±0.05 3.3 2.30 100
    φ22*26.8 22.0±0.5 26.8±0.5 0.40±0.05 3.1 2.30 100
    φ23*28.5 23.2±0.5 28.5±0.5 0.40±0.05 3.2 2.30 100
    φ25*32 25.5±0.5 32.0±0.5 0.45±0.05 4.5 2.75 100
    φ26*31 26.0±0.5 31.0±0.5 0.45±0.05 3.1 2.30 50
    φ29*34.5 29.0±0.6 34.5±0.6 0.45±0.05 3.5 2.35 50
    φ32*37 32.0±0.6 37.0±0.6 0.45±0.05 3.3 2.35 50
    φ36*42.5 36.0±0.6 42.5±0.6 0.50±0.05 4.15 3.00 50
    φ40*45 39.6±0.6 44.5±0.6 0.50±0.05 4.15 2.85 50
    φ48*54.5 48.0±0.6 54.5±0.6 0.50±0.05 4.3 3.00 25
    φ56*67.2 56.3±0.8 67.2±0.8 0.60±0.1 6.7 4.00 20
    φ66*80 66.5±0.8 80.0±0.8 0.60±0.1 8.5 5.00 15
    φ91*106 91.0±1.0 106.0±1.0 0.70±0.1 8.5 5.20 10

    Notes: Special size is available if you request.

Enquiry

If you have special specification , please feel free to  inform us below:

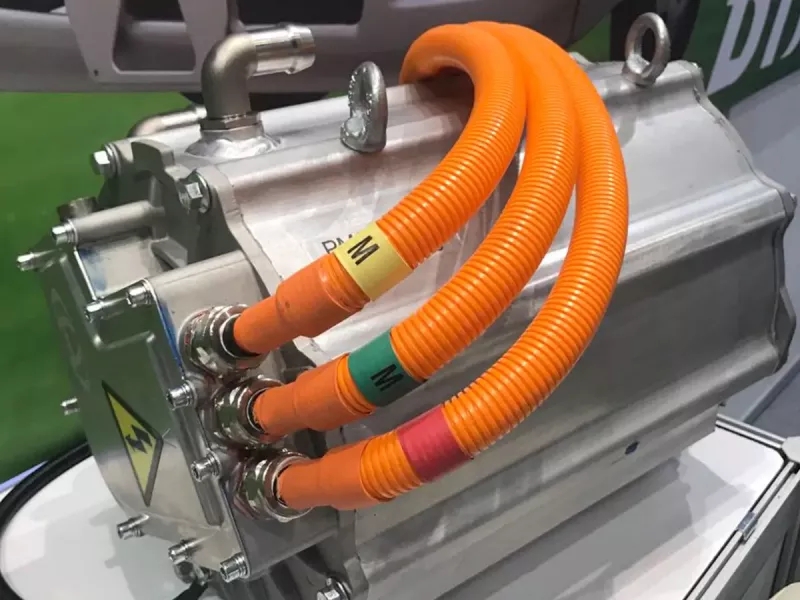

APPLICATION

VSL-BW06
