Silicone Coated Fiberglass Braided Sleeve
Category:Braided Sleeving
Silicone Coated Fiberglass Braided Sleeve

VSL-BZ17

Silicone Coated Fiberglass Braided Sleeve

APPLICATION

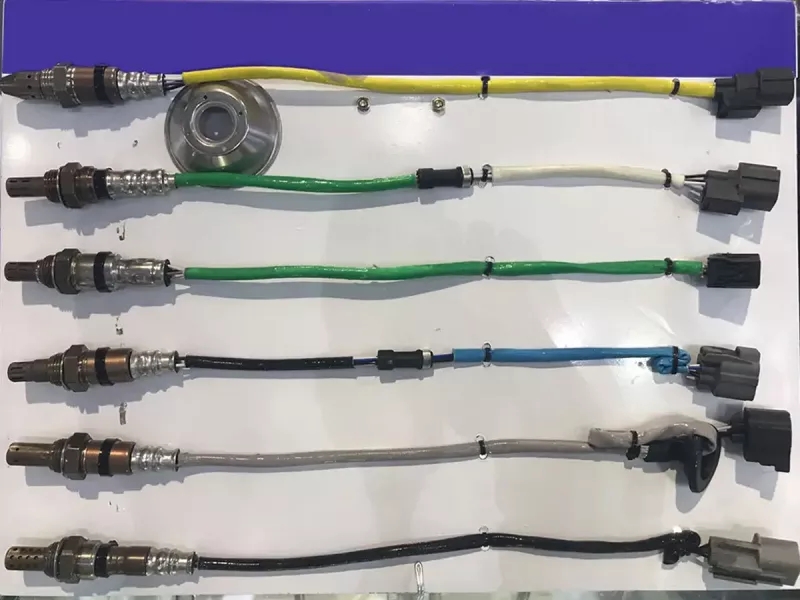

  • VSL-BZ17 is braided sleeve with non-alkali glass fiber, and then coated with silicone through high temperature. It is widely used in insulating protection of automotive sensor、Motor、electrical machinery, home appliance, electric heat equipment and so on.

  • Excellent electrical insulation performance

    Good flexibility

    Highly flame retardant

  • Material Silicone coated+ fiberglass
    Working Temperature -40~250℃
    Melting Temperature /
    Flammability VW-1
    Certificate UL ,RoHS
    Color White
    Cut to length Available
  • I.D.（mm）W.T.-1500V(mm)W.T.-2500V(mm)W.T.-4000V(mm)W.T.-7000V(mm)Packaging（m/reel）
    φ0.5+0.3-0.10.28±0.050.3±0.050.38±0.050.4±0.05200
    φ0.8+0.3-0.10.30±0.050.32±0.050.40±0.050.5±0.05200
    φ1.0+0.3-0.10.32±0.050.36±0.050.42±0.050.55±0.05200
    φ1.5+0.3-0.10.37±0.050.38±0.050.43±0.050.58±0.05200
    φ2.0+0.3-0.10.37±0.050.39±0.050.45±0.050.58±0.05200
    φ2.5+0.3-0.10.37±0.050.41±0.050.48±0.050.60±0.05200
    φ3.0+0.3-0.10.37±0.050.43±0.050.50±0.050.60±0.05100
    φ3.5+0.3-0.10.38±0.050.43±0.050.53±0.050.63±0.05100
    φ4.0+0.3-0.10.39±0.050.44±0.050.56±0.050.64±0.05100
    φ4.5+0.3-0.10.395±0.050.44±0.050.57±0.050.64±0.05100
    φ5.0+0.3-0.10.395±0.050.44±0.050.57±0.050.65±0.05100
    φ5.5+0.4-0.10.40±0.050.44±0.050.57±0.050.65±0.05100
    φ6.0+0.4-0.10.405±0.050.445±0.050.57±0.050.65±0.05100
    φ7.0+0.4-0.10.41±0.050.445±0.050.57±0.050.65±0.05100
    φ8.0+0.4-0.10.42±0.050.445±0.050.57±0.050.65±0.05100
    φ9.0+0.4-0.10.48±0.050.53±0.050.68±0.050.75±0.0550
    φ10.0+0.5-0.10.50±0.050.53±0.050.71±0.050.76±0.0550
    φ11.0+0.5-0.10.51±0.050.535±0.050.71±0.050.76±0.0550
    φ12.0+0.5-0.10.51±0.050.54±0.050.71±0.050.77±0.0550
    φ13.0+0.5-0.10.53±0.050.545±0.050.73±0.050.78±0.0550
    φ14.0+0.5-0.10.53±0.050.55±0.050.75±0.050.79±0.0550
    φ15.0+0.5-0.10.53±0.050.55±0.050.75±0.050.79±0.0550
    φ16.0+0.6-0.10.58±0.050.61±0.050.76±0.050.81±0.0550
    φ17.0+0.6-0.10.58±0.050.61±0.050.76±0.050.81±0.0550
    φ18.0+0.6-0.10.60±0.050.63±0.050.78±0.050.81±0.0550
    φ19.0+0.6-0.10.65±0.050.68±0.050.9±0.050.92±0.0550
    φ20.0+0.8-0.10.70±0.050.73±0.050.91±0.050.95±0.0550
    φ25.0+0.8-0.10.73±0.050.76±0.050.91±0.050.95±0.0525

    Notes: Special size or color is available if you request.
