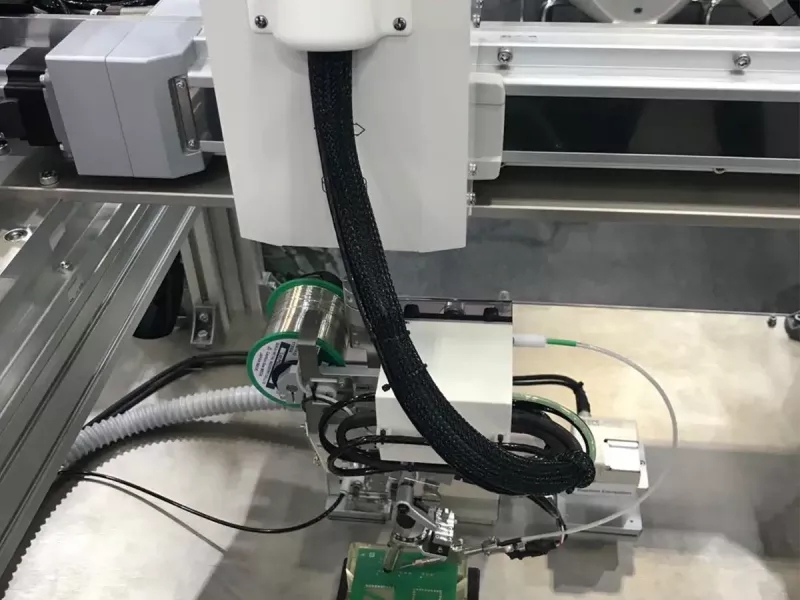

VSL-BZ09 is made of polyester monofilaments . It is normally suitable for the highly anti-abrasion protection of pipes, hoses and wire harness used in the automotive and other industrial sectors.
Exceptional abrasion and flame resistance
Easy removal if do a inspection
Good Heat Dissipation
Velcro type and Zipper Type is available
Material
polyester monofilaments
Working Temperature
-50~150℃
Melting Temperature
230℃
Flammability
VW-1
Certificate
RoHS
Color
Black,orange
Cut to length
Available
Normal Type：
I.D(d)
Overlap
D.I.A.(MAX)
Packing(L)
MM
%
MM
m/spool
3
25%
4
200
6
7
200
9
10
100
13
14
50
19
20
25
25
26
25
32
33
25
38
40
25
50
52
25
Velcro Type：
SIZE
Width
D.I.A.(MAX)
Packing(L)
MM
MM
MM
m/roll
13
10
8
50
19
10
12
50
32
20
20
50
51
20
32
50
64
20
40
50
Zipper Type：
SIZE
D.I.A.(MAX)
Packing(L)
MM
MM
m/roll
12
8
Upon customer’s requirement
20
15
30
20
50
35
64
45
Notes: Special size or color is available if you request.
