VSL-TM01
APPLICATION

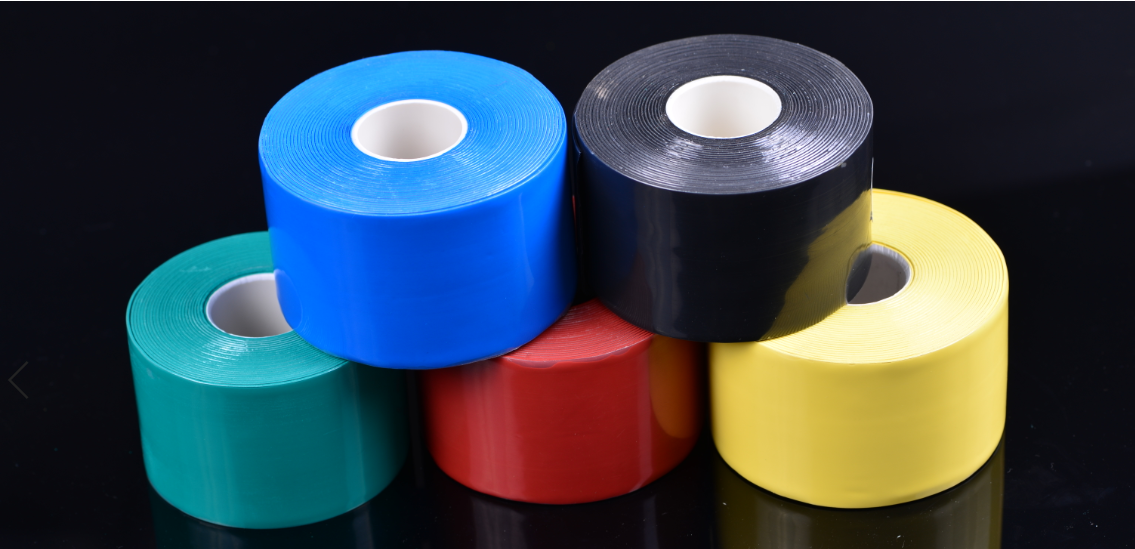

VSL-TM01 is Made of fully cured self-melting inorganic silicone rubber. It can be used in the energy and power industry high voltage field of large cable insulation, all kinds of power cable termination& Straight Joint; F/H class motor, heat insulation protection at the lead wiring, irregular conductor winding and wiring terminal; Insulation and sealing protection of insulating layer and shielding layer for large electrical facilities such as type H dry-type transformers and inductors.
High temperature resistance: it can work for a long time under -60℃~220℃, and it can also withstand high temperature impact of 300℃ in a short time
Not affected by weather and ozone, Prevent arc and magnetic track.
The liner is easy to peel off and easy to use
No flame retardant, Available in flame retardant options-(TM12FR)
Property
Test Standard
Performance Index
Test Result
Tensile Strength (Mpa)
GB/T 528-1998
Min. 3.5
3.6
Elongation at Break (%)
GB/T 528-1998
Min. 1000
1000
Volume Resistivity (Ω.cm)
GB/T 1692-92
Min. 1 x1014
1.1 x1014
Dielectric Constant
GB/T 1693-81
2---3
2.2
Breakdown Strength(kV/mm)
GB/T 1695-81
Min. 28
31
Oxygen Index (TM-12FR)
GB/T 2406-93
27
28
Flame Retardant (TM-01FR)
Flame in 60 seconds out, no combustion spread to the fixture phenomenon, no dripping ignition absorbable cotton
FV-1 Grade
Part number
Thickness(mm)
Width(mm)
Length(m)
VSL-TM01
0.3
25
9.1
VSL-TM01
0.5
25
5
VSL-TM01FR
0.8
25
5
