TPEE 175℃ Corrugated Tubing
TPEE 175℃ Corrugated Tubing

VSL-BW08

TPEE 175℃ Corrugated Tubing

APPLICATION

  • VSL-BW08 is corrugated tubing made of TPEE Thermoplastic elastomer. It is mainly used for high temperature position of automobile engine cabin or line protection of manipulator, as well as other multi-cycle load environment.

  • Super flexibility

    Good fatigue resistance

    High temperature and low temperature resistance

    Acid and alkali corrosion resistance

  • Material TPEE Thermoplastic elastomer
    Working Temperature -60~175℃（200℃ 240h）
    Flammability rating UL94-V0
    Certificate RoHS
    Color Black
    Tubing cut to open Available

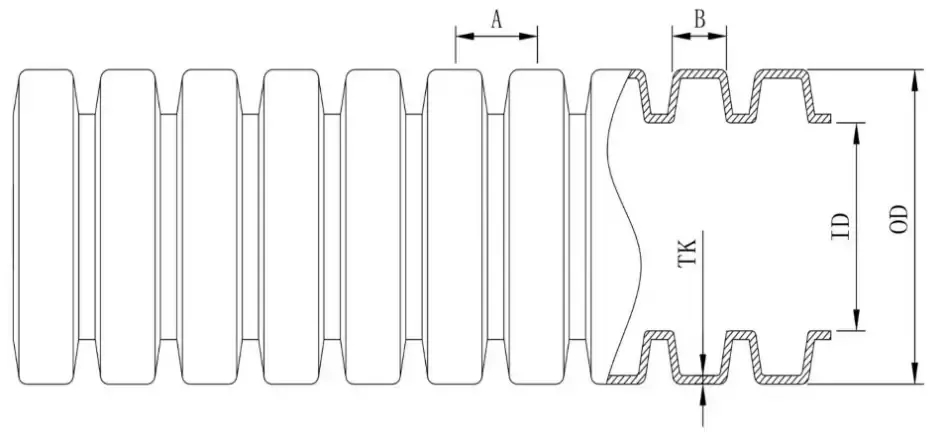

  • Size I.D.(mm) O.D.(mm) T.K.(mm) A(mm) B(mm) Packaging(m/reel)
    φ4.5*7 4.7±0.3 7.0±0.3 0.27±0.05 2.1 1.4 400
    φ5.2*7.2 5.2±0.3 7.4±0.3 0.27±0.05 2.1 1.4 400
    φ5.5*8 5.5±0.3 8.0±0.3 0.27±0.05 2.1 1.4 400
    φ6*9 6.0±0.3 9.0±0.3 0.27±0.05 2.5 1.7 200
    φ7*10 7.0±0.3 10.0±0.3 0.27±0.05 2.7 1.9 200
    φ7.5*10.5 7.7±0.3 10.7±0.3 0.27±0.05 2.7 1.8 200
    φ8.5*11.5 8.5±0.3 11.7±0.3 0.30±0.06 2.7 1.9 200
    φ9*12 9.2±0.3 12.0±0.3 0.30±0.06 2.7 1.9 200
    φ10*13 10.2±0.3 13.0±0.3 0.30±0.06 2.7 1.9 200
    φ11*14 11.2±0.3 14.0±0.3 0.30±0.06 2.7 1.9 200
    φ12.15.8 12.0±0.3 15.8±0.3 0.30±0.06 3.2 2.2 200
    φ12.9*16 12.9±0.3 16.0±0.3 0.30±0.06 3.2 2.1 200
    φ13*17 13.2±0.3 17.0±0.3 0.35±0.08 3.2 2.3 200
    φ14.3*18.5 14.5±0.4 18.5±0.4 0.35±0.08 3.2 2.3 200
    φ15.1*19.7 15.1±0.4 19.7±0.4 0.35±0.08 3.2 2.3 200
    φ15.2*18.7 15.3±0.4 18.8±0.4 0.35±0.08 3.2 2.2 200
    φ16*20 16.0±0.4 20.0±0.4 0.35±0.08 3.2 2.3 200
    φ17*21.2 17.0±0.5 21.2±0.5 0.35±0.08 3.6 2.4 200
    φ18*22 18.1±0.5 21.8±0.5 0.40±0.08 3.2 2.1 200
    φ19*23.5 19.0±0.5 23.5±0.5 0.40±0.08 3.2 2.3 200
    φ19.5*24.3 19.5±0.5 24.3±0.5 0.40±0.08 3.2 2.3 100
    φ20*25 20.5±0.5 25.0±0.5 0.40±0.08 3.1 2.3 100
    φ21*25.5 21.5±0.5 25.5±0.5 0.40±0.08 3.3 2.3 100
    φ22*26.8 22.0±0.5 26.8±0.5 0.40±0.08 3.1 2.3 100
    φ23*28.5 23.2±0.5 28.5±0.5 0.40±0.08 3.2 2.3 100
    φ25*32 25.5±0.5 32.0±0.5 0.40±0.08 4.5 2.7 100
    φ26*31 26.0±0.5 31.0±0.5 0.45±0.10 3.1 2.3 50
    φ29*34.5 29.0±0.6 34.5±0.6 0.45±0.10 3.5 2.3 50
    φ32*37 32.0±0.6 37±0.6 0.45±0.10 3.3 2.3 50
    φ36*42.5 36.0±0.6 42.5±0.6 0.50±0.10 4.2 3.0 50
    φ40*45 39.8±0.6 44.5±0.6 0.50±0.10 4.2 2.8 50
    φ48*54.5 48.0±0.6 54.5±0.6 0.50±0.10 4.3 3.0 25
    φ56*67.2 56.0±0.8 67.2±0.8 0.60±0.12 6.7 4.0 20
    φ66*80 66.5±0.8 80.0±0.8 0.60±0.12 8.5 5.0 15
    φ91*106 91.0±1.0 106.0±1.0 0.70±0.15 8.5 5.2 10

    Notes: Special size or color is available if you request.
