Automotive Anti-Abrasion Expandable Braided Sleeve
Category:Braided Sleeving
Automotive Anti-Abrasion Expandable Braided Sleeve

VSL-BZ05

Automotive Anti-Abrasion Expandable Braided Sleeve

APPLICATION

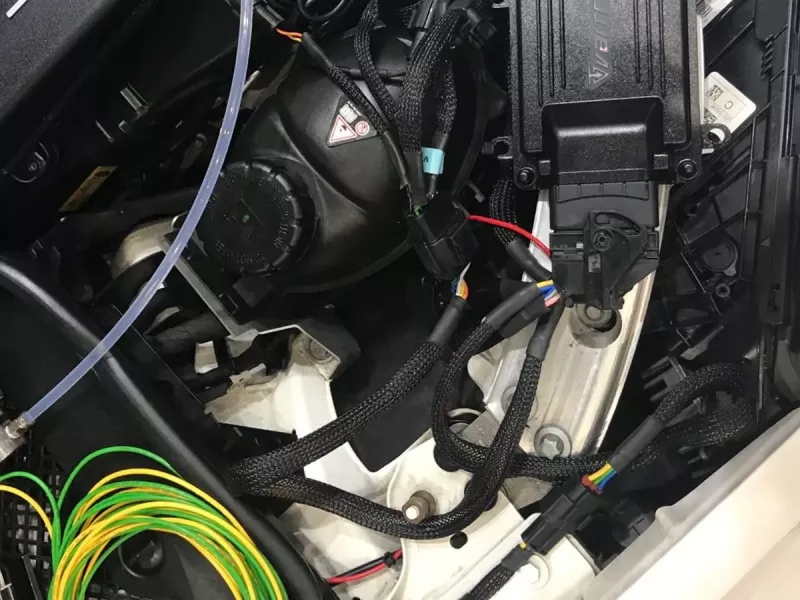

  • VSL-BZ05 is made of polyester monofilaments and nylon monofilament. It is widely used for automotive hoses, pipes ,wire harness and cables where additional protection is required.

  • Round Cut surface,easy to operate

    Protect wires tight and keep harness flexible

    Excellent abrasion resistance, heat resistance

  • Material Polyester monofilaments and nylon monofilament
    Working Temperature -50~150℃
    Melting Temperature 250℃
    Flammability VW-1
    Certificate RoHS
    Color Black
    Cut to length Available
  • Size Expandable Range(mm) Packaging
    INCH MM Min. Max. m/roll
    1/8’’ 3 3 5 500
    1/4’’ 5 5 10 500
    5/16 7 7 14 350
    3/8’’ 8 8 16 350
    1/2’’ 10 10 22 300
    5/8’’ 14 14 28 200
    3/4’’ 18 18 32 200
    1’’ 20 20 38 100
    1-1/4’’ 30 30 60 100
    1-1/2’’ 35 35 75 100
