Colorful Pattern Expandable PET Braided Sleeve
Category:Braided Sleeve

PRODUCTS

  • VSL-BZ03 is made of black and other colorful Polyester monofilament. It is designed and required by customer special needs for protecting  A/V wires, HDMI wires etc.

  • To promote and identify the trademark and brand image

  • Material Polyester
    Working Temperature -50~150℃
    Melting Temperature 250℃
    Flammability VW-1
    Certificate UL, RoHS, REACH
    Color Colorful pattern
    Cut to length Available
  • Size Expandable Range(mm) Packaging
    INCH MM Min. Max. m/roll
    1/8’’ 3 1 6 1000
    1/4’’ 6 3 9 500
    5/16 8 5 12 350
    3/8’’ 10 7 17 350
    1/2’’ 12 8 20 300
    5/8’’ 16 10 27 250
    3/4’’ 19 14 30 200
    1’’ 25 18 33 200
    1-1/4’’ 32 20 50 150
    1-1/2’’ 38 30 60 100
    1-3/4’’ 45 35 75 100
    2’’ 50 40 80 100
    2-1/2’’ 64 45 105 100
    3’’ 76 64 120 100

Enquiry

If you have special specification , please feel free to  inform us below:

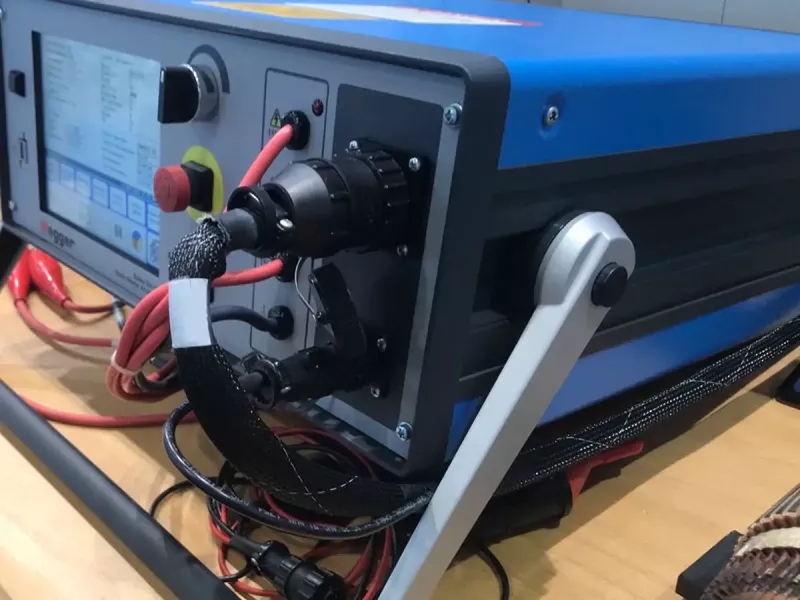

APPLICATION

VSL-BZ03
